Wall & Column Formwork System

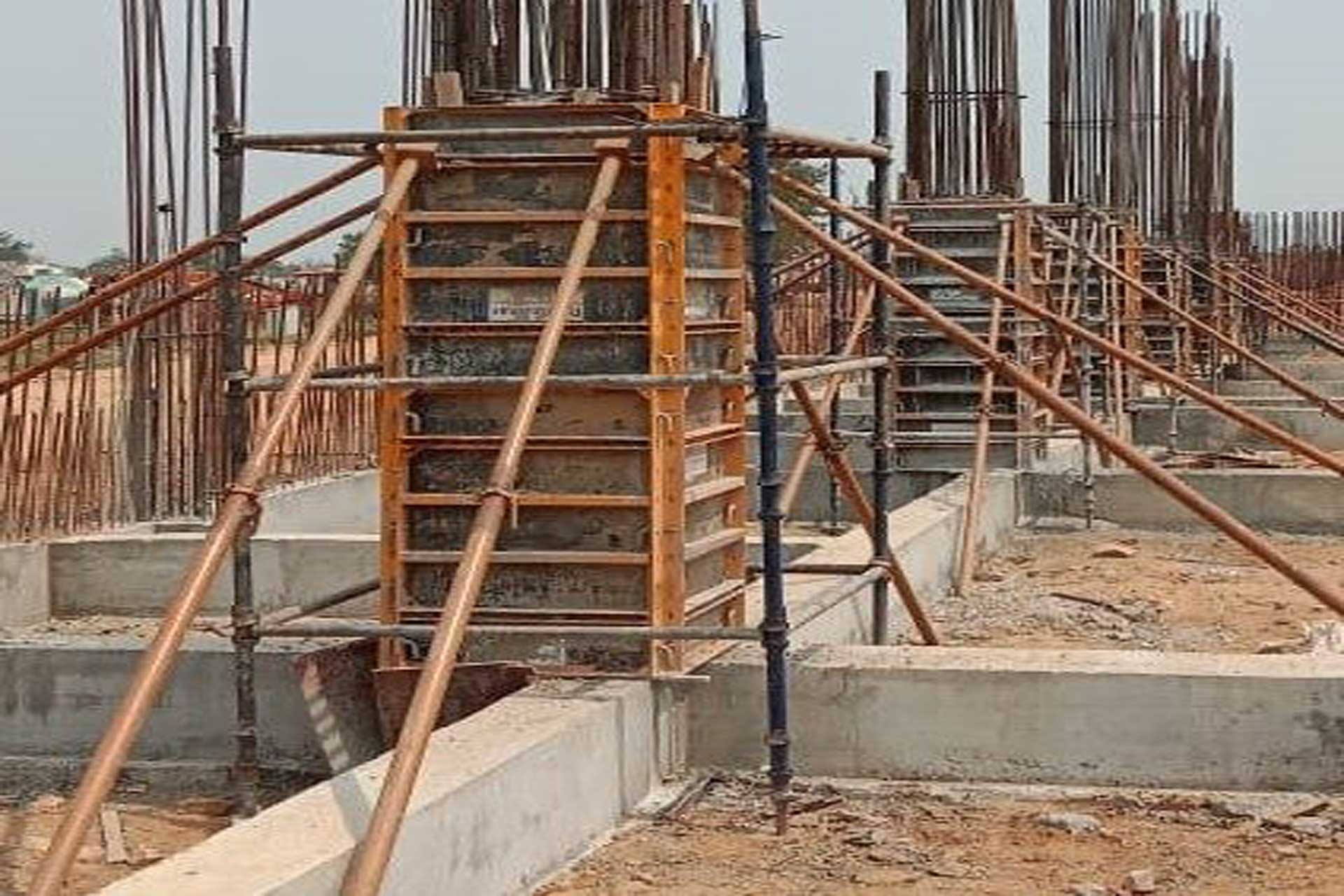

NavNirman’s Wall & Column Formwork System is suitable for casting RC-walls and Columns of minimum 15 x 15 cm.

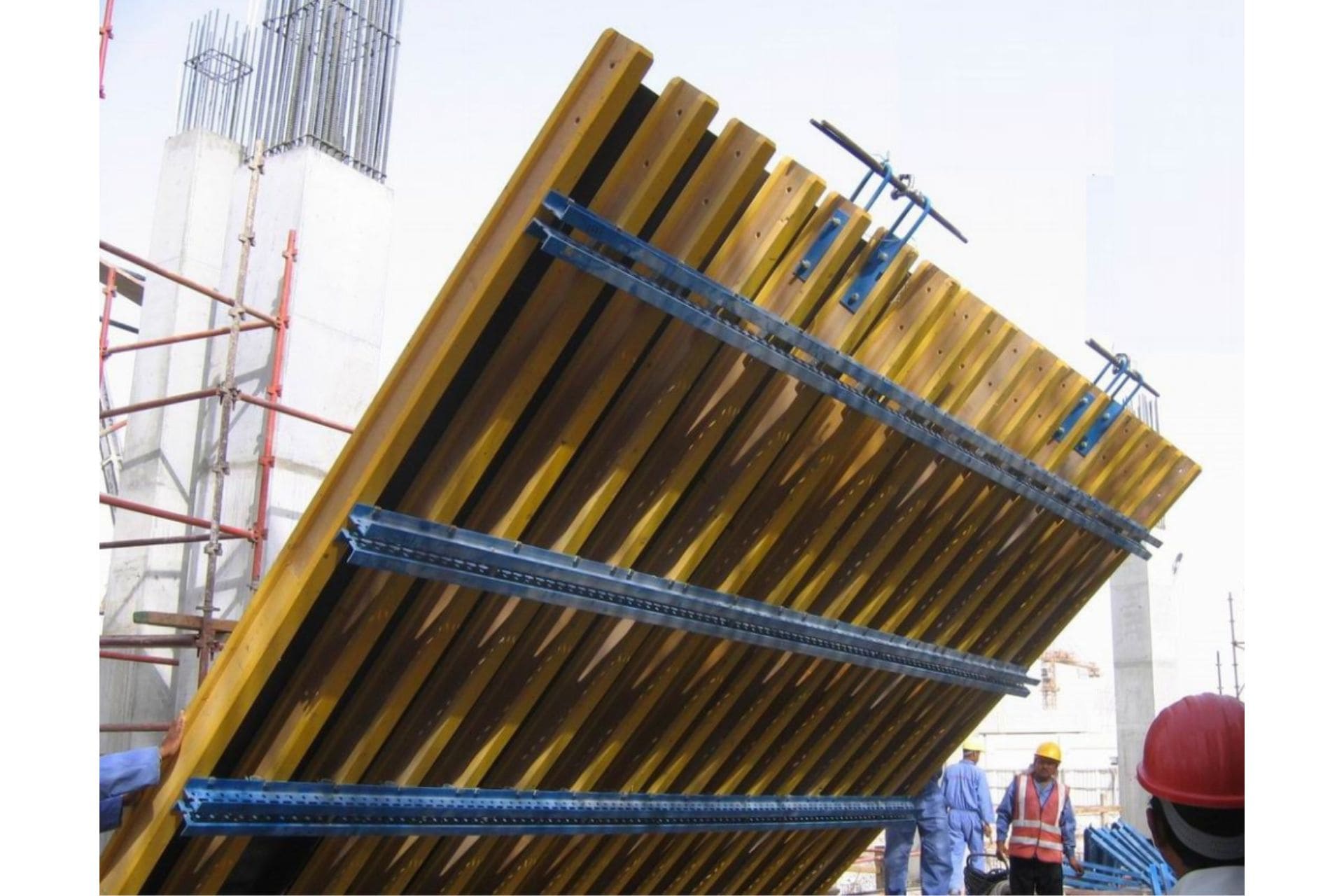

In both cases, the plywood sheathing is supported by H-beams, backed by steel wallers. This assembly facilitates fixing working platforms for access, checking of reinforcement, concreting, etc.
Panels have extra provision to achieve verticality and the concrete pressure is sustained by high strength tie system.
The high strength tie system can be through tie system or lost anchor system depending on the structure. The H-Beams can be butt and splice jointed to form larger size of panels.
The entire panel, along with the platform and alignment system can be shifted using cranes as a single unit.
